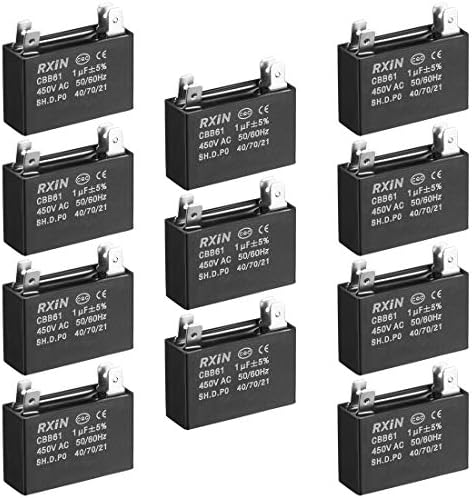

uxcell Ceiling Fan Capacitor CBB61 1uF 450V AC Double Insert Metalized Polypropylene Film Capacitors 36.5x11x24.5mm for Water Pump Motor Generator, Pack of 10 - -
uxcell Ceiling Fan Capacitor CBB61 1uF 450V AC Double Insert Metalized Polypropylene Film Capacitors 36.5x11x24.5mm for Water Pump Motor Generator, Pack of 10 - -
Well after have some summer issues last year with my outside A/C unit I knew I wanted to replaced a few parts for this coming summer season. I took all the info off the original Trane installed blower motor (sleeved bearing type) and did some research as I wanted a ball bearing motor this time. The specs are the same as the old motor with a slightly different capacitor but that came with this new motor and isn't an issue. This motor was the exact same 3 wire as my old motor with factory installed connectors and the same color wire so this was a very easy job. This motor mounted perfectly to the fan blower housing, wires were a direct plug in with the new capacitor installed and I didn't have to drill odd ball holes, It was an exact bolt up without changing anything or fabricated a thing. Took about 1 hour or so. Fan blades mounted perfectly on this motor shaft. Put it all back together and fired up the A/C unit. Ran perfect at the first start and motor is very quiet. The old motor was 9 years old. They say a ball bearing motor is abit quieter then a sleeved bearing motor. Anyway, extremely pleased with this motor. This was the part number on the motor I replaced (D154846P01 850RPM 1/4HP) Took abit of research but this motor was a perfect replacement.
Price: US $15.49
Rating: 4.6 / 5.0 from 3 Reviews
Specification
[Material] - Made of metallized polypropylene film sheet with plastic shell
[Specification] -Rated Capacity: 1uF; Tolerance: ±5%; Rated Voltage: 450V AC; Cover Size: 36.5x11x24.5mm / 1.4x0.4x1inch; Rated Frequency: 50/60Hz; Temperature Range: 40/70/21
[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
[Application] - The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc
[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one
Description
Method for Replacing Capacitors:
- 1. Cut off the power first to avoid electric shock;
- 2. Discharge the old capacitor;
- 3. Install the new capacitor according to the original wiring method.
Advantage
This CBB61 run capacitor has advantages of low loss, excellent electrical performance and long service life.
Application:
The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, range hood fan, air exchange fan, pump, motor, generator, etc.
Note:
If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.
- Material: Made of metallized polypropylene film sheet with plastic shell.
- Working Environment: This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system.
Application
|
|
|
|
|---|---|---|---|
Ceiling Fan | Air Exchange Fan | Wall Fan | Stand Fan |
Read more |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | |
| Style | 2 Wires | 3 Wires | 4 Wires | 5 Wires | Single Insert | Doule Insert |
| Rated Capacity | 15uF | 5uF+5uF | 4.5uF+5uF+5uF | 4.5uF+5uF+6uF | 3uF | 8uF |
Ordered two. One arrived perfect the other arrived with a dented case. Hope it works.
Our AC stopped working two weeks ago. It kept humming on and off. It cost about $150 minimum to find AC guy to do the repair. So we decide to make a try. Find a video on youtube.com for repair instruction. I opened up the AC cover and find the capacitor rating. Purchase this one and arrived within a few days. Right after replace the capacitor, the AC start working again.... Wow, what a accomplishment and money saving.
Ok
Product information
Technical Details
| Manufacturer | uxcell |
|---|---|
| Part Number | A18081700ux0018 |
| Item Weight | 5.8 ounces |
| Product Dimensions | 1.57 x 1.57 x 1.18 inches |
| Material | Polypropylene Film, Plastic Shell |
| Item Package Quantity | 1 |
| Batteries Required? | No |
Additional Information
| ASIN | B07JKWBN57 |
|---|---|
| Customer Reviews | 4.6 out of 5 stars3 ratings 4.6 out of 5 stars |
| Best Sellers Rank | #268,984 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #1,538 in Ceiling Fans |
| Date First Available | October 22, 2018 |
