BOJACK 30+5uF 30/5MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Home Audio & Theater
BOJACK 30+5uF 30/5MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Home Audio & Theater
Our 23-yr old Carrier A/C went out at the start of summer, just blowing warm air instead of cold. Watched some utube videos and ordered this capacitor and a new condenser fan motor. Switched out both in less than an hour and saved us about $8,500 if we had bought and installed a new central A/C system instead. Great product!!
Our a/c broke a month into buying a new house. My husband thought this would be the part we would need in order to fix it & he was right! It’s a decent price, quick shipping, it fixed our a/c in no time!
Nice capacitor..replaced a rusty one in my AC compressor...works well...
Replaced my AC run capacitor and it works. I hope that it last.
Seems like a good product.
Price: US $13.50
Rating: 4.7 / 5.0 from 103 Reviews
Specification
Capacitor dimension: Diameter, Height
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Description

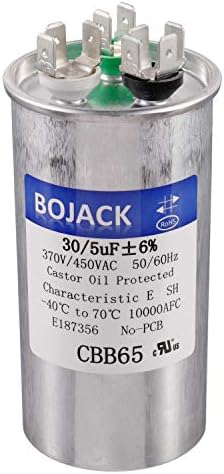

BOJACK Dual run circular start capacitor
Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 30+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<1.97 inch>Height<4.53 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.
Worked well
Just what I needed and lasted the whole season and much cheaper than buying locally.
Fast ship excellent condition!
Product information
| Package Dimensions | 4.69 x 2.87 x 2.44 inches |
|---|---|
| Item Weight | 7.4 ounces |
| Manufacturer | BOJACK |
| ASIN | B07S8KJCPM |
| Customer Reviews | 4.7 out of 5 stars103 ratings 4.7 out of 5 stars |
| Best Sellers Rank | #5,546 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #31 in Industrial Electrical Capacitors |
| Date First Available | May 26, 2019 |
