Twidec/2Pcs 450V AC 50/60Hz Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors for Ceiling Fan Motor Start Run 10uf CBB61-10: Industrial & Scientific
Twidec/2Pcs 450V AC 50/60Hz Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors for Ceiling Fan Motor Start Run 10uf CBB61-10: Industrial & Scientific
Attic roof vent fan motor was just humming - no start. But when I spun it a little by hand it accelerated and ran, so I figured the winding and bearings were OK but capacitor probably shot. On this 120 volt PSC-type motor, the capacitor is used to start the motor and when it's up and running the capacitor helps it run more efficiently. I received a pack of two 10 microfarad capacitors from Amazon next day, wired one in place of the old cap, and the motor starts and runs like new. I'm sure a service call would result in someone selling and installing a whole new vent fan for about $500. So I definitely recommend these capacitors.
My attic vent fan was taking about 15 seconds to come up to speed. This capacitor's specs matched those of the original one. After a quick adapting of this one's wires to the old cap's spade terminals, the fan starts up rapidly like it used to. Good enough, and, since the product comes in pairs I have a spare cap that I'll lose before I ever need it. Oh well.
Not much to say about these caps. Installed just fine and brought my fan back to life. My original had a thin metal mounting surface and these were quite a bit thicker, but this style is all that is available for a reasonable price. They were cheap and worked just fine. No polarity on the wiring so installed simply with crimp connectors.
ease of installation less than 10 minutes. shop fan working again.
My ceiling fan made a noise at the two high speeds that sounded like the motor had bad bearings and the motor would slow down at the higher speeds. I took down the fan and inspected the motor. The shaft turned with no indication that the bearing were bad or that there was rubbing inside the motor. Replaced the capacitor and the fan operates as it should. The capacitors were shipped and received in short ordered. very satisfied.
Price: US $7.99
Rating: 4.4 / 5.0 from 149 Reviews
Specification
The Fan Capacitor Withstand voltage 450V AC, Be able to be replaced for 250V, 370V and 440V series fan capacitor.

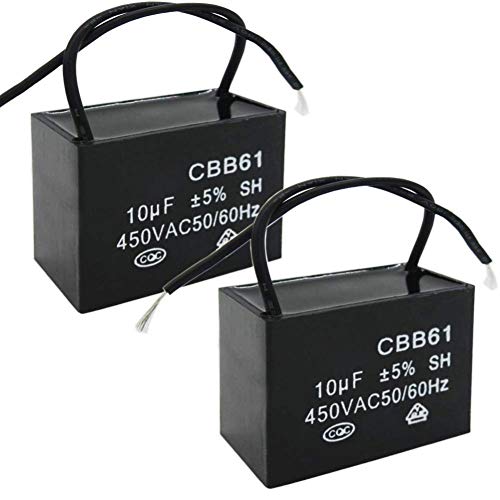

Capacitor Module: CBB61 Fan Capacitor, Capacity: 10uF, Tolerance: ±5 %, Withstand Voltage: 450V AC,Frequency: 50/60Hz
Material: Polypropylene Film;Body Size:47*18*32mm/1.8"*0.7"*1.2"(L*H*W)
The CBB61 capacitor is widely used for electric fan,range hood,air exchange fan,washing machine, ceiling fan, wall fan, stand fan , small single phase motors and also power saver. It has a long service life.
Package Includes:2 x Capacitor（Special attention: new and old colors are randomly sent）
Description
Read more
Product Details
|
|
|
|---|---|---|
The product has a mounting hole, which has a fixing effect in use；Improve the stability of products | 20-core PVC pure copper wire with high temperature resistance | This capacitor is not divided into positive and negative electrodes, and can be wired at will |
 |  |  | |
|---|---|---|---|
| 4uf Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors | 500Pcs Aluminum Electrolytic Capacitor Assortment Box Kit 24 Kinds 0.1uF－1000uF | 8uf Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors | |
| CBB61 | 4UF | 0.1-1000UF | 8UF |
 |  | |
|---|---|---|
| 5uf Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors | 6uf Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors | |
| CBB61 | 5UF | 6UF |
I replaced my Casablanca Victorian fan's capacitor and I am happy. I am sure the product will last a long time since it is well built. The good thing is that I have a spare one as well.....just in case another fan in the house blows a capacitor!!!
Neither works. What a waste of money!
easy to order nice people
Great replacement product
Good service but horrible service with Canada Post.
Must recommend for any replacement part for your bench grinder
My husband replaced the old under powered and burnt out capacitor in my breadmaker with one of these. Works beautifully.
- Package Dimensions:11.73 x 5.71 x 1.65 inches; 3.21 Ounces
- Date First Available:April 16, 2019
- Manufacturer:Twidec
- ASIN:B07QMQX87D
- Best Sellers Rank:#23,026 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
- #200 in Industrial Electrical Capacitors
- Customer Reviews:4.4 out of 5 stars149 ratings
