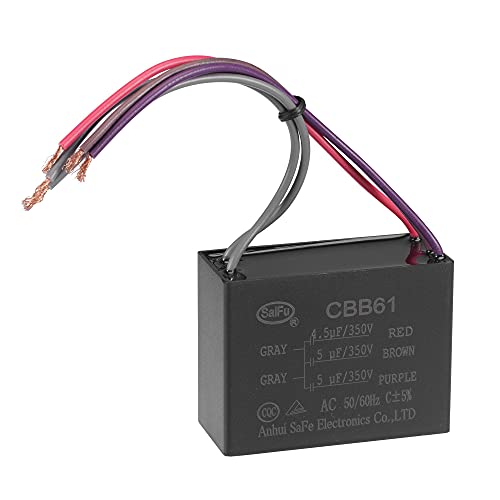

uxcell Ceiling Fan Capacitor CBB61 4.5/5/5uF 350V AC 5 Wires Metallized Polypropylene Film Capacitor 58x44x26mm for Electric Fan Pump Motor Generator: Industrial & Scientific

I don't know what it is about A/C units going out on a long hot weekend but that is what happened to use over Memorial Day. Mine was working overtime as we had a large party and by the end of the day, the fan on the condensor unit outside was running but the condensor most definitely was not. Test that the latching relay was working fine so that left the dual run capacitor as the most likely culprit. Having owned a few homes and paid overpriced A/C guys to fix it on a weekend, I know there was a cheaper option. Parts store was closed until Tuesday so I gave Amazon a shot and wouldn't you know they had the right size with next day delivery. Worked like a champ and while I can't give it 5 stars for longevity until I run it for a few months, I will say the $18 price point was great. I bought 2 so I have a spare handy the next time it fails.
After seeing my invoice for the last one that went out of over $300 and the part at over $100 I decided with my limited skills to tackle the repair as my a/c was blowing hot, the outside unit was not on and the breaker was blowing. I figured I would start with the cheapest thing that research said it could be. This part fit perfectly, and the only confusion was that the old one here in FL was so rusted on the top it was hard to figure out the stamped letters for the wiring, but finally got it! Only 3 wires to change, and key is to go one by one from old to new. Works perfect now and best $18 I ever spent!
I had my HVAC serviced recently and they said the run capacitor was low on the fan end, they wanted to charge me $330 to replace it. I found this one online which is an exact match for what's inside my outdoor unit and swapped over the 4 wires myself. For reference i live in AZ and apparently the capacitors go bad here relatively quickly. Swap was quick and easy, then I fired up my AC with no trouble at all, I can't speak to it's longevity yet but hoping it lasts at least 5 years.
Got tired of starting my AC fan with a stick. Looked for a comparable replacement cap and found this inexpensive option. Surprisingly, it is the same cap I had. Works great.
Worked perfectly in my A/C unit

Price: US $9.99
Rating: Previous / 5.0 fromReviews

Specification

[Material] - Made of metallized polypropylene film sheet with plastic shell
[Specification] -Rated Capacity: 4.5/5/5uF; Tolerance: ±5%; Rated Voltage: 350V AC; Cover Size: 58x44x26mm / 2.3x1.7x1inch; Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
[Application] - The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc
[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

Description

3.1

Method for Replacing Capacitors:

1. Cut off the power first to avoid electric shock;
2. Discharge the old capacitor;
3. Install the new capacitor according to the original wiring method.

Advantage

This CBB61 run capacitor has advantages of low loss, excellent electrical performance and long service life.

Application:

The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, range hood fan, air exchange fan, pump, motor, generator, etc.

Note:

If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.

Material: Made of metallized polypropylene film sheet with plastic shell.
Working Environment: This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system.


Ceiling Fan	Air Exchange Fan	Wall Fan	Stand Fan


	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor
Style	2 Wires	3 Wires	4 Wires	5 Wires	Single Insert	Doule Insert
Rated Capacity	15uF	5uF+5uF	4.5uF+5uF+5uF	4.5uF+5uF+6uF	3uF	8uF
