Twidec/2Pcs 450V AC 50/60Hz Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors for Ceiling Fan Motor Start Run 4uf CBB61-4: Industrial & Scientific

Twidec/2Pcs 450V AC 50/60Hz Run Capacitor 2-Wire Metallized Polypropylene Film Capacitors for Ceiling Fan Motor Start Run 4uf CBB61-4: Industrial & Scientific

---

These things are more than twice the size of 400 uf capacitor they were purchased to replace and will not fit into the fan housing. I guess it is my fault was not verifying the dimensions.

Length: 48mm (1.89 inches)
Height: 33mm (1.30 inches)
Depth: 19mm (0.75 inches)
good replacement
Brought my ceiling fan back to life.
Fast shipment, the correct rating for the fan capacitor. However it does not come with any instructions for installing.

---

Price: US $7.99
Rating: 4.5 / 5.0 from 42 Reviews

---

Specification

The Fan Capacitor Withstand voltage 450V AC, Be able to be replaced for 250V, 370V and 440V series fan capacitor.

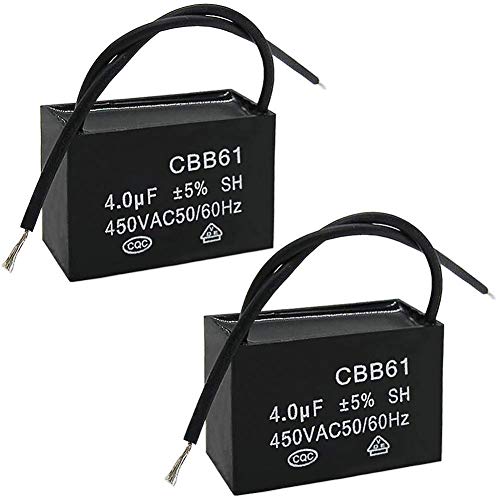

Capacitor Module: CBB61 Fan Capacitor, Capacity: 4uF, Tolerance: ±5 %, Withstand Voltage: 450V AC,Frequency: 50/60Hz
Material: Polypropylene Film;Body Size:47*18*32mm/1.8"*0.7"*1.2"(L*H*W)
The CBB61 capacitor is widely used for electric fan,range hood,air exchange fan,washing machine, ceiling fan, wall fan, stand fan , small single phase motors and also power saver. It has a long service life.
Package Includes:2 x Capacitor（Special attention: new and old colors are randomly sent）

---

Description

it is non polar capacitor for New Tech , widely used in ceiling fan mahjong machine for better starting motor to make blade work and produce wind.

---

Replaced Emerson motor on heat pump. Motor is great and a fraction of the cost of a Hayward replacement. But as a universal after market unit they need to include more helpful tips for installing. Example 3 wire single capacitor cut off brown/white wire, rotation is looking at back of motor this way you can set it and sleeve up wires instead of pull above grate, mounting bolts template my old motor mounts were smaller then this one. I was lucky my grate had larger hole already their. If you have to drill new holes template would be grate. These tip would be nothing to add to a web page
Took a chance and this is a good replacement for my Emerson k55hxkdm3218.
The specifications are nearly identical except for the RPM. The Emerson was a bit higher at 1170rpm. Other than that, everything else was the same. Took awhile to get the fan blade off the old moto but was easy to install on the new motor. The new fan moto has two brown wires. One wire is brown/white. This is the reverse counter clockwise vs clockwise. Again I had to take a guess and figure to have the fan suck th air from the ground up,
In my case I had to reverse the rotation, which requires changing 2 jumper cables. I used the 3 220 wires and used cable-ties to secure the 100 wires into a loop.

---

• Package Dimensions‏:‎4 x 2.8 x 0.4 inches; 2.4 Ounces
• Date First Available‏:‎April 16, 2019
• Manufacturer‏:‎Twidec
• ASIN‏:‎B07QS27P4D

• Best Sellers Rank:#59,084 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #727 in Industrial Electrical Capacitors

• Customer Reviews:4.5 out of 5 stars42 ratings

---
