BOJACK 65+5uF 65/5MFD ±5% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump air Conditioner: Industrial & Scientific

BOJACK 65+5uF 65/5MFD ±5% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump air Conditioner: Industrial & Scientific

---

I roll eyes on "professionals" in this industry but if you want
SOLID BUILD QUALITY
This is the standard.
Easy to install
Received it fast, fits perfectly,
Perfect fit, great price, item as described.
Used it on my air conditioner.

---

Price: US $14.90
Rating: 4.4 / 5.0 from 23 Reviews

---

Specification

Capacitor dimension:Diameter, Height
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

---

Description

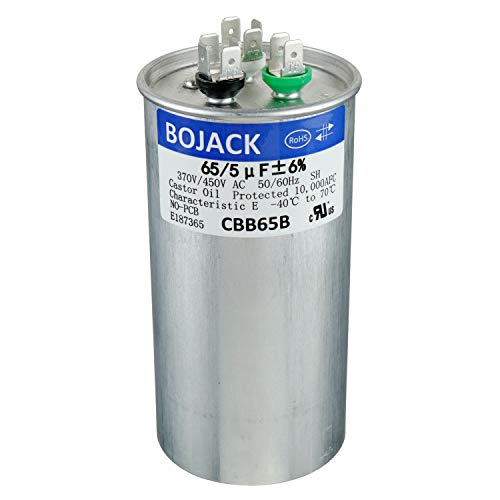

BOJACK Dual run circular start capacitor

ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor

Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 65+5uf
Tolerance: ±5%
Rated voltage: 440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension:Diameter<1.97 inch>Height<5.31 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

---

The form factor on this part is NOT correct. Selected this vendor because it specifically had the correct part number and warranty. Usually not just matching specifications and sticking to the part number gets the correct part. Not this time. Operating specifications are the same - It functions. However, it is physically too large in diameter to fit the application for Carrier P/N HC98JA051 which it is supposed to replace. It does NOT fit in the bracket holding the capacitor, and the unit shell can’t be closed with the capacitor installed in the factory location. “Well simply use another bracket and relocate it” – yes, did that. But BEWARE, not as easy as most will assume. Real estate is very limited and wires for the capacitor were too short. If it wasn’t July, I would have sent it back.
This was an exact replacement for the dead capacitor in our air conditioner. A great price too. It fit perfectly and fixed our dead aircon unit. FYI the compressor and fan weren't running.

This looks like this is a good product. I used a digital Fluke meter to measure the capacitance values and they were spot on, within 2% of specs.

With the low price I bought a spare one to have on hand "just in case".
So far the 50+5 MFD it worked out and was able to fixed my on and off issue that it was doing on my central AC unit.. had for 3 days now time will tell and see how long they will last. I all so added a hard start 5-2-1 kit with to help out the capacitor initial start up.. purchase 2 of these and have the other just for backup in the near future.. good products so far.

---

• Package Dimensions‏:‎5.63 x 2.68 x 2.64 inches; 13.76 Ounces
• Date First Available‏:‎June 27, 2019
• Manufacturer‏:‎BOJACK
• ASIN‏:‎B07TJHTVSB

• Best Sellers Rank:#19,252 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #188 in Industrial Electrical Capacitors

• Customer Reviews:4.4 out of 5 stars23 ratings

---
