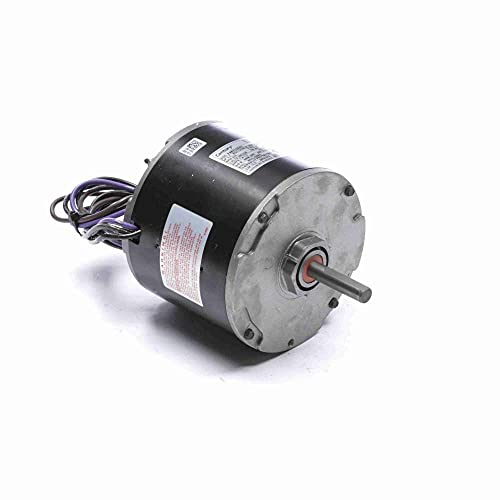

Century 1/4 HP Condenser Fan Motor, Permanent Split Capacitor, 825 Nameplate RPM, 200-230 VoltageFrame 48Y - OTR1028: Electric Fan Motors: Industrial & Scientific

Century 1/4 HP Condenser Fan Motor, Permanent Split Capacitor, 825 Nameplate RPM, 200-230 VoltageFrame 48Y - OTR1028: Electric Fan Motors: Industrial & Scientific

---

Well after have some summer issues last year with my outside A/C unit I knew I wanted to replaced a few parts for this coming summer season. I took all the info off the original Trane installed blower motor (sleeved bearing type) and did some research as I wanted a ball bearing motor this time. The specs are the same as the old motor with a slightly different capacitor but that came with this new motor and isn't an issue. This motor was the exact same 3 wire as my old motor with factory installed connectors and the same color wire so this was a very easy job. This motor mounted perfectly to the fan blower housing, wires were a direct plug in with the new capacitor installed and I didn't have to drill odd ball holes, It was an exact bolt up without changing anything or fabricated a thing. Took about 1 hour or so. Fan blades mounted perfectly on this motor shaft. Put it all back together and fired up the A/C unit. Ran perfect at the first start and motor is very quiet. The old motor was 9 years old. They say a ball bearing motor is abit quieter then a sleeved bearing motor. Anyway, extremely pleased with this motor. This was the part number on the motor I replaced (D154846P01 850RPM 1/4HP) Took abit of research but this motor was a perfect replacement.

---

Price: US $182.30
Rating: 5.0 / 5.0 from 1 Reviews

---

Specification

Made in Mexico

---

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 200-230V AC, Full Load Amps 1.50-1.40, 48Y Frame, OEM Replacement Brand Trane, Replacement For 3D146983P01, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud

---

Ordered two. One arrived perfect the other arrived with a dented case. Hope it works.
Our AC stopped working two weeks ago. It kept humming on and off. It cost about $150 minimum to find AC guy to do the repair. So we decide to make a try. Find a video on youtube.com for repair instruction. I opened up the AC cover and find the capacitor rating. Purchase this one and arrived within a few days. Right after replace the capacitor, the AC start working again.... Wow, what a accomplishment and money saving.
Ok

---

• Product Dimensions‏:‎9 x 6.9 x 7.3 inches; 13 Pounds
• Item model number‏:‎CECOMINOD075388
• Date First Available‏:‎December 5, 2015
• Manufacturer‏:‎Century Electric Motor
• ASIN‏:‎B001OJX1GG

• Best Sellers Rank:#253,451 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement)
  • #534 in Electric Fan Motors

• Customer Reviews:5.0 out of 5 stars1 rating

---
