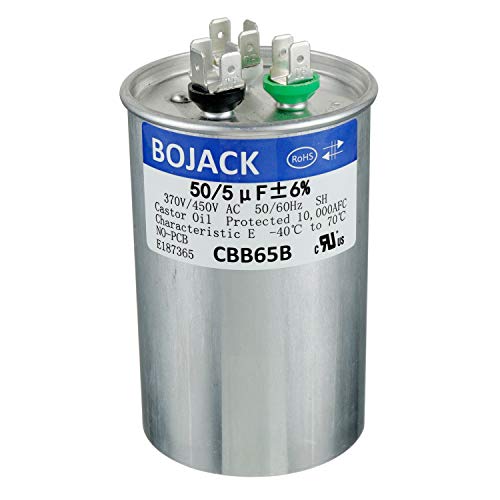

BOJACK 50+5uF 50/5MFD ±5% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

BOJACK 50+5uF 50/5MFD ±5% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

---

Capacity busted on my AC during the heat wave. Originally bought an American made capacitor to arrive the next day but it was lost in the mail. Bought this because it is fastest to arrive (2-day delivery.)
Try to support USA manufacturer but to bad USPS mucked it up.
Works great.
The replaced GE capacitor was made in Mexico. It ran for 10+ years. Let's see how long this one will last.
Even it only last 4-5 years, 2 of these is still cheaper than the USA made one. How do we compete!!
Purchased as a spare so I’m not caught without one on the hottest day of the year but I’m sure it will be fine for our air conditioning unit. 😊
This little welder wasn’t much when I took possession. A small AC welder that splattered hot metal all over and struggled to lay down a bead. Now, thanks in part to this slick little capacitor, it is a sweet DC welder with reversed polarity and the ability to lay down a decent weld for small projects.
Still running strong after a couple of months. Dimensions were accurate. Will buy a second one as a backup.
It failed and burned wires after a month.

---

Price: US $14.50
Rating: 4.7 / 5.0 from 87 Reviews

---

Specification

Capacitor dimension: Diameter Height
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

---

Description

BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 50+5uf
Tolerance: ±5%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<1.97 inch>Height<5.31 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

---

Ordered two. One arrived perfect the other arrived with a dented case. Hope it works.
Our AC stopped working two weeks ago. It kept humming on and off. It cost about $150 minimum to find AC guy to do the repair. So we decide to make a try. Find a video on youtube.com for repair instruction. I opened up the AC cover and find the capacitor rating. Purchase this one and arrived within a few days. Right after replace the capacitor, the AC start working again.... Wow, what a accomplishment and money saving.
Ok

---

• Package Dimensions:5.6 x 2.2 x 2.1 inches; 9.6 Ounces
• Date First Available:May 26, 2019
• Manufacturer:BOJACK
• ASIN:B07S7LJC68

• Best Sellers Rank:#14,795 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #97 in Industrial Electrical Capacitors

• Customer Reviews:4.7 out of 5 stars87 ratings

---
