BOJACK 12.5 uF ±6% 12.5 MFD 370V/440V CBB65 Oval Run Start Capacitor for AC Motor Run or Fan Start and Cool or Heat Pump Air Conditione: Industrial & Scientific

BOJACK 12.5 uF ±6% 12.5 MFD 370V/440V CBB65 Oval Run Start Capacitor for AC Motor Run or Fan Start and Cool or Heat Pump Air Conditione: Industrial & Scientific

---

The furnace blower motor quit running, so I first checked the capacitor. It appeared slightly expanded and checked as open so I looked up a replacement using the original part number and found this listing . All specifications seemed to be the same, so I ordered it. When it arrived in two days, I found it to be an exact replacement in all ways, even physical size. That made replacing it very easy and in a few minutes the motor was running perfectly again. A great replacement part at an extremely good price.
My HVAC furnace (return) fan capacitor went out and needed to be replaced for me to have heat. The brand of capacitor doesn’t really matter, just make sure all your numbers match the one you’re replacing ( uF #, V #, and Hz #). The capacitor was the exact one I had ordered, and was in good shape. After a few minutes it was installed and my heat was back on. This is the 2nd capacitor I’ve ordered from amazon, (my HVAC outside A/C unit needed one a few years ago) they are cheaper than a normal HVAC supply company and do the same job. Don’t worry about the brand or the vendor, match your numbers and find the best price. Even if you’re not mechanically savvy, diagnosing and replacing a capacitor is very easy and there are several videos online to show you how to do both, save yourself a lot of money by doing it on your own.
Run motor capacitor for furnace blower. Works properly.
Great product ac blower cranked right up when replaced. Thanks for ast service
Perfect replacement from my air-handler capacitor.

---

Price: US $9.50
Rating: 4.7 / 5.0 from 71 Reviews

---

Specification

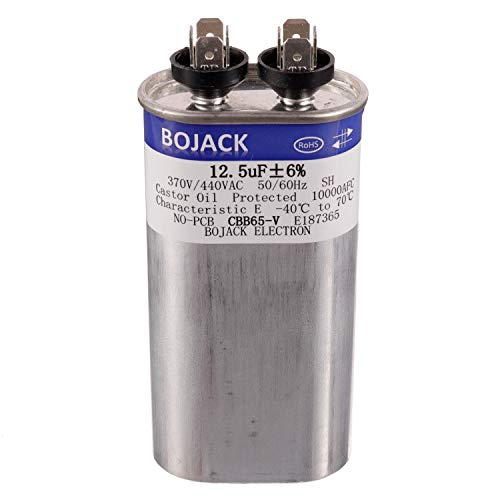

BOJACK 12.5 uf MFD 370V/440VAC Oval Run Start Capacitor
Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
This Capacitor Will Run Compressor And Fan Motor
UL Recognized(E187356),Engineered For Safety 10 000 AFC Anti Explosion Pressure Switch
Replacement for :97F9003 , Z97F9003 , 27L572 , P2911253 ,P291-1253 , C312L , HCKS125V440Z , TP-CAP-12.5/440

---

Description

BOJACK 12.5 uF 370V/440V CBB65 Oval Run start capacitor

Model: CBB65（Universal model）
Shell material: Case Material Aluminum, Cover Material Steel
Dielectric Material: metallized polypropylene film
Capacity: 12.5 uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Length<2.02 inch>,Wide<1.23 inch>Height<4.53 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for a compressor motor and a fan motor
start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement forCentral Air-Conditioners,
Heat Pumps, Condenser Fan Motors, and Compressors.It is small
in size, lightweight, heat resisting and anti-explosion.

Oval run capacitor can be used to substitute round shape one with the
same MFD and volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

---

Worked great for my rotisserie conveersion
Worked great. We have heat again.

---

• Package Dimensions:4.6 x 2.2 x 1.3 inches; 5.61 Ounces
• Date First Available:July 24, 2019
• Manufacturer:BOJACK
• ASIN:B07VNGVL48

• Best Sellers Rank:#55,262 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #384 in Industrial Electrical Capacitors

• Customer Reviews:4.7 out of 5 stars71 ratings

---
