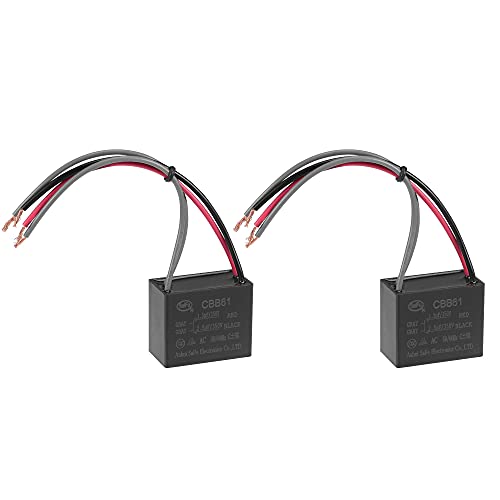

uxcell Ceiling Fan Capacitor CBB61 1.5/2.5uF 350V AC 4 Wires Metallized Polypropylene Film Capacitor 38x31x21mm for Electric Fan Pump Motor Generator 2Pcs: Industrial & Scientific
uxcell Ceiling Fan Capacitor CBB61 1.5/2.5uF 350V AC 4 Wires Metallized Polypropylene Film Capacitor 38x31x21mm for Electric Fan Pump Motor Generator 2Pcs: Industrial & Scientific
Plug and play! Works great. Quick delivery. Love it!
easy to install. Great price
Price: US $9.49
Rating: Previous / 5.0 fromReviews
Specification
[Material] - Made of metallized polypropylene film sheet with plastic shell
[Specification] -Rated Capacity: 1.5/2.5uF; Tolerance: ±5%; Rated Voltage: 350V AC; Cover Size: 38x31x21mm / 1.5x1.2x0.8inch; Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
[Application] - The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc
[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one
Description
Method for Replacing Capacitors:
- 1. Cut off the power first to avoid electric shock;
- 2. Discharge the old capacitor;
- 3. Install the new capacitor according to the original wiring method.
Advantage
This CBB61 run capacitor has advantages of low loss, excellent electrical performance and long service life.
Application:
The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, range hood fan, air exchange fan, pump, motor, generator, etc.
Note:
If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.
- Material: Made of metallized polypropylene film sheet with plastic shell.
- Working Environment: This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system.
Application
|
|
|
|
|---|---|---|---|
Ceiling Fan | Air Exchange Fan | Wall Fan | Stand Fan |
Read more |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | CBB61 Capacitor | |
| Style | 2 Wires | 3 Wires | 4 Wires | 5 Wires | Single Insert | Doule Insert |
| Rated Capacity | 15uF | 5uF+5uF | 4.5uF+5uF+5uF | 4.5uF+5uF+6uF | 3uF | 8uF |
It is really pointless note but caps are rarely have very accurate value, and does not need to be. +/-20% would be perfectly fine.
It is just interesting that I've measured values of only 1 or 2 % off. This is beyond need but maybe an indication of tight manufacturing quality process control.
It is shorter than original/old cap with exactly the same specs. Diameter is the same though.
Working fine, no issues at all. Previous cap lasted about 7 years. Will see about this one.
Arrived in less than 24 hours and fixed our A/C problem. Neither fan or compressor was running. I spun the fan by hand and it ran, so I figured it might be the starter capacitor. Installed in about five minutes. Had to wrap some electrical tape around the body since it's a little thinner than the original, and the clamp didn't hold it tightly. My wife was very happy, and I'm her hero. I'm sure it saved quite a bit over a service call.
The fan on my a/c unit stopped spinning, but I could hear the motor buzzing, as if it wanted to spin. My furnace/blower was working, but no cool air because the unit was not working. I checked the capacitor and it looked as if it was shot. So, I went online to see where I could find one. It was a holiday weekend, so all HVAC stores were shuttered. Surprisingly, Amazon had capacitors available for next day delivery. For under $20 I decided to make the purchase. It arrived as expected. I took great care when removing the old capacitor - shutting off all electricity to the unit - and replaced it with the new capacitor. The whole process took less than ten minutes. After all of the connections were in place and the electricity was flowing, we turned the thermostat on and the unit kicked in - just like new!!! Within a matter of minutes, the upstairs began cooling down. Maybe the best purchase I’ve ever made, especially since it was the hottest weekend on record in LA! This was a big DIY Win!!!
- Package Dimensions:5.79 x 5 x 1.65 inches; 2.65 Ounces
- Date First Available:May 8, 2021
- Manufacturer:uxcell
- ASIN:B094FC2T5M
