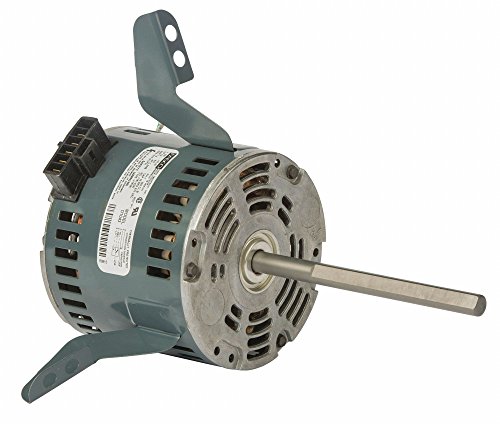

FASCO Permanent Split Capacitor Condenser Fan Motor, 1/4 HP, 1001-1100 RPM Range 265V, CWSE: Industrial & Scientific

FASCO Permanent Split Capacitor Condenser Fan Motor, 1/4 HP, 1001-1100 RPM Range 265V, CWSE: Industrial & Scientific

---

Saved myself a lot of money by putting an ohm meter across my old one and reading a short. Two HVAC techs told me I needed a whole new furnace for $1,700. They lied.
The capacitor works fine. However, it is a little bigger than the original which prevents the reinstallation of the fan cover. I had to lengthen the wires and hot glue the cap to the outside of the housing. Looks bad but it works. Maybe someone else has a better idea.
Used to replace capacitors in a ceiling fan.

---

Price: US $
Rating: Previous / 5.0 fromReviews

---

Specification

---

Description

OEM Replacement Brand: IEC
Item: Condenser Fan Motor
Motor Design: Permanent Split Capacitor
Phase: 1
HP: 1/4
RPM Range: 1001-1100
No. of Speeds: 3
Voltage: 265
Motor Shaft Rotation: CWSE
Frame: 42
Motor Enclosure Design: Open Air-Over
Motor Mounting Type: Lug
Shaft Dia.: 1/2"
Shaft Length: 6-5/16"
Number of Shafts: 1
Motor Thermal Protection: Auto
Nameplate RPM: 1075
Motor Application: OEM Replacement
Motor Sub Application: Condenser Fan
Full Load Amps: 1.6
Hz: 60
Ins. Class: B
Max. Ambient Temp.: 40 Degrees C
Motor Service Factor: 1.00
Motor Bearings: Sleeve
Motor Shaft Design: Flat
Body Dia.: 5-7/64"
Length Less Shaft: 4-9/16"
Overall Length: 10-7/8"
Stud Size: 8-32 X 1/16"
Capacitor Required: 2MDV7
Replacement For: 289211
Application: Fans and Blowers

---

This motor works excellent, and was the right price. Color coded wires made it easy to connect.
good price, quick ship.
Saved us in this heat. Fast delivery, easy to install.

---

• Package Dimensions‏:‎2 x 2 x 2 inches
• Date First Available‏:‎September 24, 2018
• Manufacturer‏:‎CAI - FASCO
• ASIN‏:‎B07HLVR339

---
