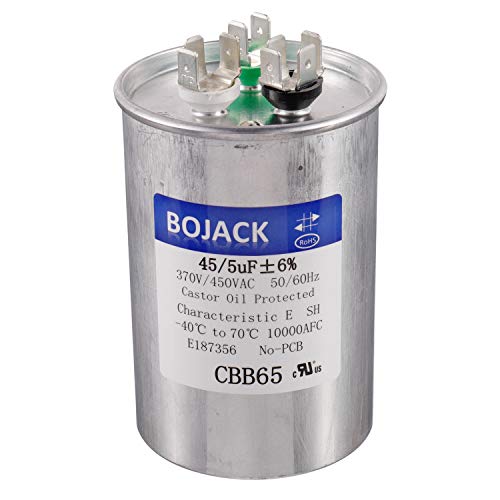

BOJACK 45+5 uF 45/5 MFD ±6% 370V/440VAC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

BOJACK 45+5 uF 45/5 MFD ±6% 370V/440VAC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

---

I am not an licensed HVAC technician, I don't play one on TV but when my compressor would not start on a warm day, I thought to check the capacitor and replace it first before calling in the professionals. There are several different brands for the size I needed (45/5 uF) but this one had the fastest shipping so it was chosen for that reason. When I installed it into the compressor after disconnecting power and taking pictures of how the old one was wired, my compressor came back to life. I gave myself a small pat on the back thinking how I just saved myself at least $250 if I had to call a tech to come out and fix this for me. Being a homeowner is really about being a jack of all trades. These are consumables so it is recommended to keep a spare on hand. Your compressor will always fail on a Saturday on the hottest day of the year. There is no doubt about that.
I rarely write reviews. But I was in a bind, and this product worked, so I thought I should add my experience to the few on here. I ordered 3 capacitors (to get same-day shipping and have spares). Installed one in about two minutes total, and our Trane came back to life. With nearly 100 degree temps outside, it’s easily activated our unit 125+ plus times in the past couple of weeks. No problems thus far. When you know a capacitor is all you need, this beats the hell out of paying a tech $200 for the same part. CAVEATS: I purchased 3 but have only used 1 so far. They all appear identical, however. Also, our unit is old and I know how to diagnose the problem. If you have a newer unit, understand your limitations and the risks you take with this kind of repair. The actual install could be done by a child. But it can be easy to miss a more complex problem with your unit and ultimately do more harm than good. I had a 24 hour deadline to make my own repair, and this was perfect.
After my York YCS36B21SA started to make a loud buzzing noise i cleaned the contactor and no luck. I then read that replacing the capacitor may help. Figured I'd spend the 14 bucks and give this a shot. Sure enough it worked like a champ! My AC is quiet again!!
Of course ours died during the hottest week of the year during Covid times. thankfully it only took three days to get here and it was easily installed and the cooler came back to life. Going to buy a couple more to have on hand.
When my AC compressor quit it was suggested I replace the capacitor before calling AC company. I could have paid more for this item, but took a chance on it. Works great. I know the AC company would have wanted to sell me a compressor, so extremely pleased with product.

---

Price: US $13.50
Rating: 4.7 / 5.0 from 158 Reviews

---

Specification

BOJACK 45+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor
Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ ，Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262

---

Description

BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter(65 mm/2.56 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Round capacitor can be used to substitute oval shape one with the
same MFD AND Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 440 volt.

---

Bought this to replace my capacitor in my HVAC. Had to endure two days of no AC while it was being shipped, but installed it as soon as it arrived and or worked perfectly now I have AC again. The dimensions were different than the one I had so it didn't quite fit the same way, nothing some duct tape can't fix.
Ordered Thursday evening... Picked it up Saturday morning... had cold air again by noon...
BOJACK ELECTRON...
I am back in business with ice cold air the dual capacitor did the trick hallelujah brothers and sisters

---

• Package Dimensions:5.5 x 2.1 x 2.1 inches; 10.41 Ounces
• Date First Available:May 26, 2019
• Manufacturer:BOJACK
• ASIN:B07S8KJYQL

• Best Sellers Rank:#8,616 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #38 in Industrial Electrical Capacitors

• Customer Reviews:4.7 out of 5 stars158 ratings

---
