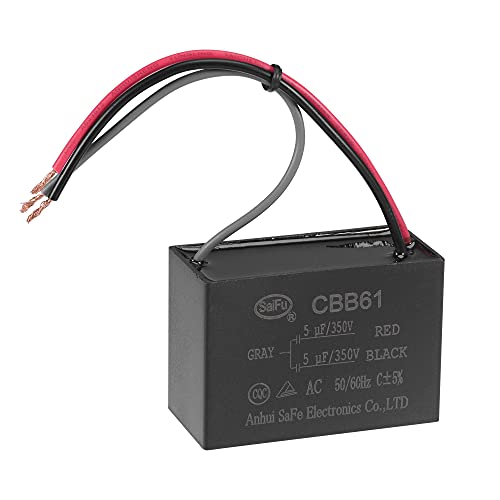

uxcell Ceiling Fan Capacitor CBB61 5/5uF 350V AC 3 Wires Metallized Polypropylene Film Capacitor 58x40x28mm for Electric Fan Pump Motor Generator: Industrial & Scientific

uxcell Ceiling Fan Capacitor CBB61 5/5uF 350V AC 3 Wires Metallized Polypropylene Film Capacitor 58x40x28mm for Electric Fan Pump Motor Generator: Industrial & Scientific

---

If you're searching for a capacitor like this, it's likely because your blower fan on your HVAC system stopped working and if you have central AC then you also have a dual run capacitor on your outdoor compressor/condenser. The tell tale sign of a bad capacitor is if it's deformed or bulging at the top or bottom. A service call can run anywhere from $150 or more to replace one of these.

This capacitor lasted a little more than 2 years before it died and I feel like I got my money's worth out of it.

I've had a few of these fail me over the years and never gave it much thought because I was covered under a service contract for my HVAC system. I would simply call the service number or schedule a visit online and someone would show up the next day to fix it. Well, that's all well and good until it's the middle of August during a heat wave with the heat index topping around 110° and your capacitor fails on a Friday night and you can't get a service tech to come out until Monday AM. That's exactly what happened to me about 2 years ago which is why I ended up buying this particular item. I figured I would just do a Google search and find a store in my area to buy one and install it myself, however, the only stores that carry these are usually HVAC wholesale supply stores that only sell to businesses and contractors. There are plenty of YouTube DIY videos showing how easy these are to replace. Well, the technician shows up and tells me that sometimes these capacitors will last 6 years or more and sometimes only a year. A good tech will replace the capacitor and examine the entire system to make sure there's nothing else going on that caused the capacitor to blow, for instance; clogged evaporator or condenser coils, electrical short or bad ground wires or loose connections. After a thorough inspection that took about 45 minutes he determined that the capacitor probably just died because they’re not too fond of heat and failed. He told me I should probably keep two (2) of each capacitor; the blower fan and outdoor dual run capacitor in case the same situation happened again. He said I should have two of each in the event that one of them is bad and also because they're usually pretty cheap. There's a saying in the military that goes; "Two is one, one is none, three are for me!" He said that there isn't any one brand that's better than the other since he's replaced all different brands. The one that this capacitor replaced was actually made in the USA and lasted about 4 years. So, after the service visit, I bought three (3) capacitors for the blower fan and compressor and keep them handy. If you're dead set on getting a product made in the USA you should look up Titan HD (not Titan Pro) or Aerovox, but keep in mind that you're going to pay about 2-3 times the price of something made in China so why not buy 3 of the ones from China instead of just 1 from the USA?

I would suggest checking out some of the DIY videos on YouTube and get familiar with what size and type of capacitor you have. If you have an outdoor compressor for your central AC then it will be close to where the electrical wire comes in. For the blower fan it will be very close to the fan itself. Always make sure you turn off the breaker and pull the disconnect prior to attempting to change these. Measure it and take a picture of the label so you can reference it later if need be. If your capacitor is rated for 370 volts then you can use a 370v or 440v capacitor but not the other way around. Just be sure and get a 440 volt capacitor regardless.
I am by no means an HVAC guy. I'm just an average DIYer who takes pride in fixing something that would normally cost countless $$$ to hire a professional. My now 23 year old Lennox rooftop unit has been a workhorse up until recently. The main ignition control module went out last summer during a heat wave. AC relays were toast. Thankfully I found a new board kit on Amazon for a mere $162 where as everyone else wanted $350+. SCORE! Now the most recent problem. I'll hear the unit running but it just doesn't blow air every time. First thing that comes to mind is the blower motor. Ouch. Big $$$. But when I check the blower motor out it spins fine and the coils don't look or smell burnt. So I figure let's replace the cheap stuff before we go nuclear and buy a new motor. Well, that did it. This $4.30 little capacitor fixed it. Who would have thunk? I now have an order in for an extra for my upstairs unit as well as an extra for my down stairs unit.
This cap is a little shorter than the original (see pic) but the voltage numbers match up so I figure it's good to go. Also, the temperature rating is a little lower but I'm thinking it's not going to get over 70º C (158º F) at the blower. Even if it does, it's only a $5 fix.
As of now, my blower is working as it should and as time goes on, or things change, I'll report back. In the meantime this is a very inexpensive functional replacement capacitor. I highly recommend.
Every air handle in the house will have an air handler fan and one of these. Depending on the size of the air handler fan motor, it could be either 7.5 or 10 uF capacitor. My old furnace has 10 uF capacitor that failed one summer. The AC compressor ran for hours and yet the house does not get cool because the air handler fan does not run. I went outside and checked the AC unit and there is ice build up on the line going to the house from the connector. I went down to the basement and checked the air handler and sure enough the air handler fan is not going. I shut down everything, change out the air handler capacitor, and wait for the ice to thaw from the line before turning it back on. Everything works again without any issue, but if I was not home and checked the AC unit, I think the compressor could have been damaged because it will never stop running and eventually burned out. I have both 7.5 uF and 10 uF capacitors because the heat pump uses 7.5 while the furnace uses the 10. Again, they are inexpensive invesment to keep them on hand when the air handler motor stops working.
If your blower in your hvac system is humming, starting slow, running low power, or anything wrong in any way this is probably the problem

my heater used to cycle on/off and turn off due to overheating the blower used to take like 30 seconds to get up to speed while making a loud humming. The blower was so sluggish and ineffective my furnace would turn off and it still had tons of heat left in it and the ducks.

Now after changing this small capacitor when the blower clicks on it takes off instantly!no humm just power! ive never felt so much pressure from my vents or heard my furnace run so quiet!

Im glad the old one went out finally because it really needed replaced and this replacment was definitely a upgrade

My furnace is working better then it ever has
Did the job in repairing my furnace/heat pump fan. Had to save me hundreds in a service call and their parts and labor. An easy repair. If you notice you fan not working go on youtube, get your model number snd do some research. I've repaired my refrigerator and now my heat pump with these simple steps. Don't be afraid of your home appliances!!

---

Price: US $9.49
Rating: Previous / 5.0 fromReviews

---

Specification

[Material] - Made of metallized polypropylene film sheet with plastic shell
[Specification] -Rated Capacity: 5/5uF; Tolerance: ±5%; Rated Voltage: 350V AC; Cover Size: 58x40x28mm / 2.3x1.6x1.1inch; Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
[Application] - The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc
[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

---

Description

Method for Replacing Capacitors:

• 1. Cut off the power first to avoid electric shock;
• 2. Discharge the old capacitor;
• 3. Install the new capacitor according to the original wiring method.

Advantage

This CBB61 run capacitor has advantages of low loss, excellent electrical performance and long service life.

Application:

The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, range hood fan, air exchange fan, pump, motor, generator, etc.

Note:

If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.

• Material: Made of metallized polypropylene film sheet with plastic shell.
• Working Environment: This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system.

Read more

Application

Ceiling Fan	Air Exchange Fan	Wall Fan	Stand Fan

Read moreRead more

	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor
Style	2 Wires	3 Wires	4 Wires	5 Wires	Single Insert	Doule Insert
Rated Capacity	15uF	5uF+5uF	4.5uF+5uF+5uF	4.5uF+5uF+6uF	3uF	8uF

---

I needed this as a replacement of a run capacitor on a hot tub circulation pump motor. After receiving it, I tested it's capacity with a meter, and it was within specification. I therefore have no complaints.
Of course the A/C broke down over Memorial Day weekend. Blower motor wasn't working. Just needed a run capacitor. Amazon to the rescue. It was delivered and ready for installation when I got home Tuesday evening.

---

• Package Dimensions‏:‎6.3 x 5.47 x 1.85 inches; 3.67 Ounces
• Date First Available‏:‎May 8, 2021
• Manufacturer‏:‎uxcell
• ASIN‏:‎B094FCZJYZ

---
