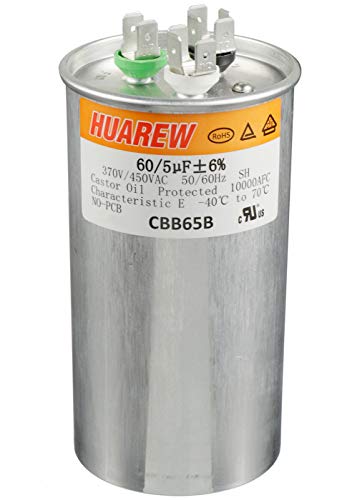

HUAREW 60+5 uF ±6% 60/5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner or AC Motor and Fan Starting: Industrial & Scientific

HUAREW 60+5 uF ±6% 60/5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner or AC Motor and Fan Starting: Industrial & Scientific

---

Works perfectly

---

Price: US $14.90
Rating: 4.5 / 5.0 from 30 Reviews

---

Specification

▲HUAREW high quality CBB65B composite capacitor
▲Capacitance tolerance: ± 6%
▲Rated voltage: 370V / 450VAC
▲Allowable working temperature: -40 ℃ to 70 ℃
▲Safety protection level: S1

---

Description

HUAREW high quality CBB65B composite capacitor

Technical Parameters：

Model: CBB65B
Capacitance tolerance: ± 6%
Rated voltage: 370V / 450VAC
Rated frequency: 50 / 60Hz
Tangent of loss angle: ≤0.002 (100Hz)
Voltage between poles: 2Un 60s
Polar shell withstand voltage: 2000V 60s
Insulation resistance: RC≥3000M Ω · μF

---

Replaced Emerson motor on heat pump. Motor is great and a fraction of the cost of a Hayward replacement. But as a universal after market unit they need to include more helpful tips for installing. Example 3 wire single capacitor cut off brown/white wire, rotation is looking at back of motor this way you can set it and sleeve up wires instead of pull above grate, mounting bolts template my old motor mounts were smaller then this one. I was lucky my grate had larger hole already their. If you have to drill new holes template would be grate. These tip would be nothing to add to a web page
Took a chance and this is a good replacement for my Emerson k55hxkdm3218.
The specifications are nearly identical except for the RPM. The Emerson was a bit higher at 1170rpm. Other than that, everything else was the same. Took awhile to get the fan blade off the old moto but was easy to install on the new motor. The new fan moto has two brown wires. One wire is brown/white. This is the reverse counter clockwise vs clockwise. Again I had to take a guess and figure to have the fan suck th air from the ground up,
In my case I had to reverse the rotation, which requires changing 2 jumper cables. I used the 3 220 wires and used cable-ties to secure the 100 wires into a loop.

---

• Package Dimensions‏:‎5.5 x 2.7 x 2.7 inches; 12.8 Ounces
• Item model number‏:‎HR-CFH-605UF
• Date First Available‏:‎March 30, 2020
• Manufacturer‏:‎HUAREW
• ASIN‏:‎B086JND5Z3

• Best Sellers Rank:#12,815 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #127 in Industrial Electrical Capacitors

• Customer Reviews:4.5 out of 5 stars30 ratings

---
