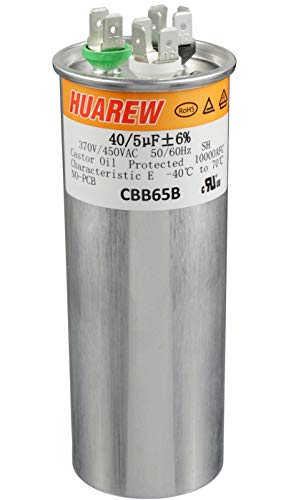

HUAREW 40+5 uF ±6% 40/5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner or AC Motor and Fan Starting: Industrial & Scientific

HUAREW 40+5 uF ±6% 40/5 MFD 370/450 VAC CBB65 Dual Run Start Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner or AC Motor and Fan Starting: Industrial & Scientific

---

Our AC is only 7 years old and started to malfunction. I simply replaced the capacitor with this one 3 months ago and since then it has been working without any problem.

If your AC is not starting or not cooling, try replacing the capacitor as that is really low cost compared to having a technician come to your house and it might solve your problem. If it does not, you at least have a new capacitor which will prevent future problem.
the specs did exactly what my compressor/fan needed and did it's job & fixed my aircon. Saved me on labor and parts. So if your aircon suddenly stopped cooling but everything seems fine like the condenser fan still spins, this capacitor probably needs replacing.
I checked it with a cap tester, under load it performed as it should
Fit my heatpump and worked exactly as expected.
Just got the delivery, put it on and my AC started right away!

---

Price: US $17.50
Rating: 4.6 / 5.0 from 39 Reviews

---

Specification

▲HUAREW high quality CBB65B composite capacitor
▲Capacitance tolerance: ± 6%
▲Rated voltage: 370V / 450VAC
▲Allowable working temperature: -40 ℃ to 70 ℃
▲Safety protection level: S1

---

Description

HUAREW high quality CBB65B composite capacitor

Technical Parameters：

Model: CBB65B
Capacitance tolerance: ± 6%
Rated voltage: 370V / 450VAC
Rated frequency: 50 / 60Hz
Tangent of loss angle: ≤0.002 (100Hz)
Voltage between poles: 2Un 60s
Polar shell withstand voltage: 2000V 60s
Insulation resistance: RC≥3000M Ω · μF

---

Price and speed of delivery

---

• Package Dimensions‏:‎6.06 x 2.17 x 2.13 inches; 9.66 Ounces
• Item model number‏:‎HR-CFH-405UF
• Date First Available‏:‎March 30, 2020
• Manufacturer‏:‎HUAREW
• ASIN‏:‎B086JN9QR1

• Best Sellers Rank:#16,976 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #166 in Industrial Electrical Capacitors

• Customer Reviews:4.6 out of 5 stars39 ratings

---
