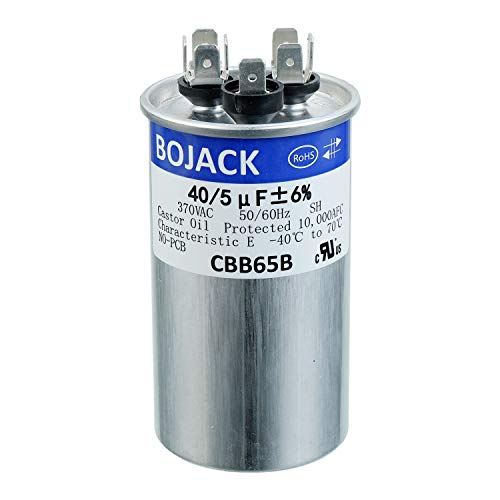

BOJACK 40+5uF 40/5MFD ±6% 370V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

BOJACK 40+5uF 40/5MFD ±6% 370V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight: Industrial & Scientific

---

Great value. Easy to install. Just follow the safety precautions for installing this cap and make sure all the power is off and you're in business.
This wasn't an exact fit for my unit but it worked perfectly. I was hesitant to purchase due to the lack of reviews but I am happy to report that it was installed with ease and is working to perfection. I would recommend!
Had no issues installing this on my AC fan. Was a perfect fit, got to me very fast when our AC was out.
recommend
It charged immediately

---

Price: US $13.90
Rating: 5.0 / 5.0 from 2 Reviews

---

Specification

Capacitor dimension: Diameter Height
Operating temperature: -40 ℃ to +70℃
Safety rated: 10,000 AFC
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

---

Description

BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor,
"Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 40+5uf
Tolerance: ±6%
Rated voltage: 370V
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<1.97 inch>Height<4.53 inch>
Operating temperature: -40 ℃ to +70℃

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.
It is small in size, lightweight, heat resisting and anti-explosion.

---

• Package Dimensions‏:‎4.37 x 2.25 x 2.13 inches; 7.05 Ounces
• Date First Available‏:‎September 24, 2020
• Manufacturer‏:‎BOJACK
• ASIN‏:‎B08JYDV2FW

• Best Sellers Rank:#5,114 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #54 in Industrial Electrical Capacitors

• Customer Reviews:5.0 out of 5 stars2 ratings

---
