BOJACK CBB61 4.5uF+6uF+5uF 250V AC Ceiling Fan Starting Capacitor for Compatible with Harbor Breeze & New Tech 5 Wire(Pack of 1 Pcs): Industrial & Scientific

BOJACK CBB61 4.5uF+6uF+5uF 250V AC Ceiling Fan Starting Capacitor for Compatible with Harbor Breeze & New Tech 5 Wire(Pack of 1 Pcs): Industrial & Scientific

---

My fan would operate at only two speeds, I replaced the switch, problem not solved; internet search said that the capacitor was likely the problem. Replaced the capacitor and functionality is restored.

The fan would start on the first pull and I thought that was the fastest speed, I would pull again and get no change, pull again and it would slow down; I assumed I was missing the middle speed. After replacing the capacitor, I learned that I was apparently missing the fastest speed, because the fan really moves now and all speeds appear to work properly.

I assume the fan is a Harbor Breeze (from Lowe's). The original capacitor part is E185116, C61, 4.5uF/300V(red), 6uF/250V(brown), 5uF/250V(purple).
This part brought my fan back to life. I bought 2 and fixed 2 fans.

---

Price: US $6.99
Rating: 4.7 / 5.0 from 5 Reviews

---

Specification

Model : CBB61
Capacitor Capacity: 4.5uF+6uF+5uF ±5%
Rated Voltage : 250V AC
Rated Frequency : 50/60Hz
Capacitor size：50x23x34 mm/1.97x0.90x1.33 inch(L*W*H)

---

Description

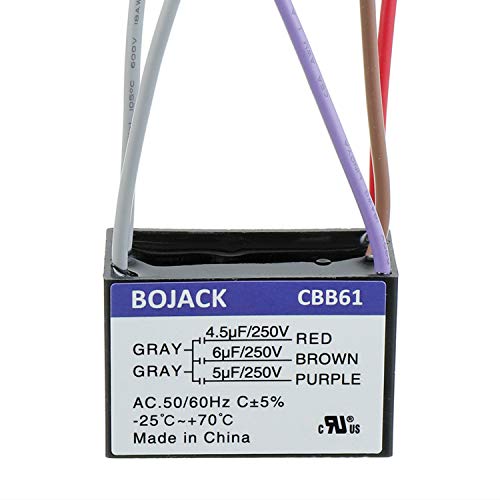

BOJACK High Quality CBB61 Ceiling Fan Starting Capacitors

Electrical Parameters：

Model : CBB61
Capacity: 4.5uF+6uF+5uF
Tolerance: ±5%
Rated voltage: 250V AC
Rated Frequency : 50/60Hz
Operating temperature: -25 ℃ to +70℃
Capacitor lead-out: UL#1015/18AWG -10CM lead
Capacitor size：50x23x34 mm/1.97x0.90x1.33 inch(L*W*H)

---

should have tested this when i first got it. had to replace the cap today and this cap is as useless as the bad one that lasted few years. return window was closed awhile back so wasted $$$. so make sure you test the values between the terminals. if no reading. send it back.
Our AC went out and it was because of the capacitor. This item was available when all the other stores that sold the item were closed over the weekend. It shipped fast and arrived when we needed it and it worked. Now our AC is working.
Our Ac stopped working. It would only blow out hot air. My husband was able to change the part and fix it with this item. Saved us big bucks! We might have to replace the Ac soon but I’m hoping we bought ourselves some time.

---

• Package Dimensions:7.87 x 3.22 x 0.92 inches; 3.84 Ounces
• Item model number:BJ-C61-4.5/6/5UF
• Date First Available:October 8, 2020
• Manufacturer:BOJACK
• ASIN:B08KVYM2VQ

• Best Sellers Rank:#79,434 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • #941 in Industrial Electrical Capacitors

• Customer Reviews:4.7 out of 5 stars5 ratings

---
