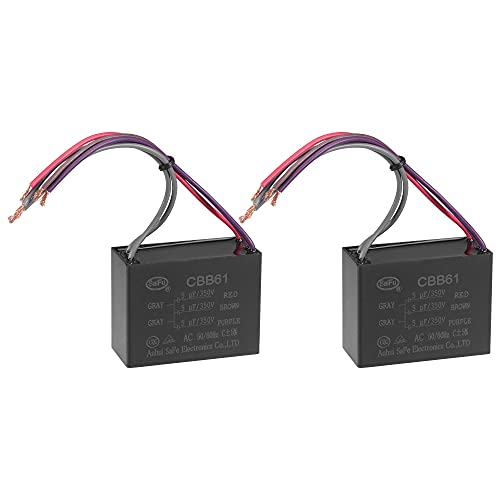

uxcell Ceiling Fan Capacitor CBB61 5/5/5uF 350V AC 5 Wires Metallized Polypropylene Film Capacitor 58x44x26mm for Electric Fan Pump Motor Generator 2Pcs: Industrial & Scientific

uxcell Ceiling Fan Capacitor CBB61 5/5/5uF 350V AC 5 Wires Metallized Polypropylene Film Capacitor 58x44x26mm for Electric Fan Pump Motor Generator 2Pcs: Industrial & Scientific

---

I used this in my Coleman Mach III A/C unit for my popup camper. I read blogs and other articles that said if your A/C fan doesn't turn on when you turn it on but you can hear the motor humming and the compressor working then you most likely need a new capacitor for the fan. I took a risk and ordered this after removing the current capacitor to find the model and specs. When I removed the A/C shroud I found on the inside panel the wiring diagram and wire colors that were connecting to the fan run capacitor and that's how I knew which part was the one in question. Thankfully when I connected this new one it began working again! This wasn't hard to do and it saved me a lot of time and money.

One note of caution, an electrician friend told me that after removing the old capacitor to be careful and not accidentally touch both sets of terminals because it can give a shock since capacitors store electricity. I just made sure to wear gloves and then connected both terminals with a screw driver. In my case since the capacitor was old and needing replacement it didn't have much charge so I was fine, but just a word of caution here. Also, I am not and don't claim to be an expert in anything electric.
The AC on my Coleman Westlake required hand starting the blower motor to get it going. Replacing all 3 capacitors fixed the issue.
Perfect replacement. Easy installation and working well. This is for the fan motor only in the AC, but I also replaced the compressor capacitor at the same time, so as not to have to repeat disassembly of the AC shroud and capacitor cover, and avoid climbing to the roof of the RV.
This was not my problem but it went in without a hitch.
My unit was silent, no humming, nothing. Ended up being a bad terminal connection, at the control board under the cover and inside the exchanger box of the roof A/C unit on the RV. Simply moving the connector on its mating spade made it work. Argg! Light corrosion causing intermittent problem. Life in an RV.

Replacing this item is relatively easy but involves dangerous heights and exposure to severe electric shock if done incorrectly.
EXTREME caution needs to exercised when performing the task.
I fixed my RV air conditioner with it. The price was right vs having a RV AC mechanic charge shop rates for the repair. I'm not saying that shop rates aren't fair. Shops have huge overhead and they have to make a profit to stay in business. I'm just happy that I could find this part and make the repair myself.

---

Price: US $13.99
Rating: Previous / 5.0 fromReviews

---

Specification

[Material] - Made of metallized polypropylene film sheet with plastic shell
[Specification] -Rated Capacity: 5/5/5uF; Tolerance: ±5%; Rated Voltage: 350V AC; Cover Size: 58x44x26mm / 2.3x1.7x1inch; Rated Frequency: 50/60Hz; Climatic Category: 40/85/21
[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
[Application] - The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc
[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

---

Description

Method for Replacing Capacitors:

• 1. Cut off the power first to avoid electric shock;
• 2. Discharge the old capacitor;
• 3. Install the new capacitor according to the original wiring method.

Advantage

This CBB61 run capacitor has advantages of low loss, excellent electrical performance and long service life.

Application:

The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, range hood fan, air exchange fan, pump, motor, generator, etc.

Note:

If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.

• Material: Made of metallized polypropylene film sheet with plastic shell.
• Working Environment: This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system.

Read more

Application

Ceiling Fan	Air Exchange Fan	Wall Fan	Stand Fan

Read moreRead more

	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor	CBB61 Capacitor
Style	2 Wires	3 Wires	4 Wires	5 Wires	Single Insert	Doule Insert
Rated Capacity	15uF	5uF+5uF	4.5uF+5uF+5uF	4.5uF+5uF+6uF	3uF	8uF

---

installed new motor and replaced capacitor, flow wire diagram when replacing. easy to replace.
Works great. My problem was elsewhere but it was cheap enough, so just left it installed and kept old one for back up.
ordered this for a old Coleman AC about an 2005 model, works great, easy to install, and a good value for the money

---

• Package Dimensions‏:‎6.97 x 5.39 x 2.64 inches; 6.21 Ounces
• Date First Available‏:‎May 8, 2021
• Manufacturer‏:‎uxcell
• ASIN‏:‎B094FDTCWM

---
